Specification
| Basic Information | ||
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors | |
| Chipset | Intel H510 Chipset | |
| Form Factor | mATX Form Factor | |
| Audio | 7.1-Channel High Definition Audio | |
| Expansion Slots | ||
| PCI | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 1x PCIe 3.0 x1 slot (From PCH) |
|
| M.2 Socket | 1x M.2 slot with E key for WiFi module only(M2_2) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2x DDR4 memory slots, | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP |
|
| Maximum Memory | support up to 64GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz |
|
| Connector & Ports | ||
| USB (s) | 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector) |
|
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller | |
| Supported Storage | 4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) M2_1 slot (From H510 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| Audio | 1x Front panel audio connector | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
Description

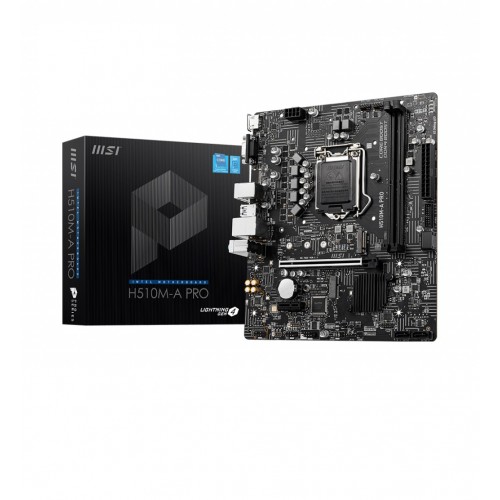

MSI H510M-A PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard
MSI H510M-A PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 3200(Max) MHz. With premium layout and digital power design to support more cores and provide better performance. MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards. It’s Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. Here, Advanced technology to deliver pure data signals for the best performance and stability. This Motherboard has Advanced technology to deliver pure data signals for the best performance and stability with PCIe 4.0 Lightning Fast Experience. Here, Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. The Audio Boost Reward your ears with studio grade sound quality. Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays. The latest MSI H510M-A PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard has 03 years warranty.
What is the price of MSI H510M-A PRO 10th Gen and 11th Gen Mirco-ATX Motherboard in Sylhet Bangladesh?
The latest price of MSI H510M-A PRO 10th Gen and 11th Gen Mirco-ATX Motherboard in Sylhet Bangladesh is 8,500৳. You can buy the MSI H510M-A PRO 10th Gen and 11th Gen Mirco-ATX Motherboard at best price from our website or visit any of our showrooms in Sylhet .
