Specification
| Basic Information | ||
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200 |
|
| Chipset | Intel B560 chipset | |
| BIOS | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
|
| Form Factor | mATX Form Factor 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm) |
|
| Audio | Realtek AL897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 1x PCIe 3.0 x1 slots (From B560 chipset) |
|
| M.2 Socket | 1x M.2 slot (Key M) | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2x DDR4 memory slots | |
| Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 MHz 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | Up to 64GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| VGA (s) | 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz | |
| USB (s) | 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors) |
|
| LAN Port (s) | 1x Intel I219V 1Gbps LAN controller | |
| Supported Storage | 4x SATA 6Gb/s ports (From B560 Chipset) 1x M.2 slot (Key M) M2_1 slot (From B560 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| Audio | 1x Front panel audio connector | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
Description

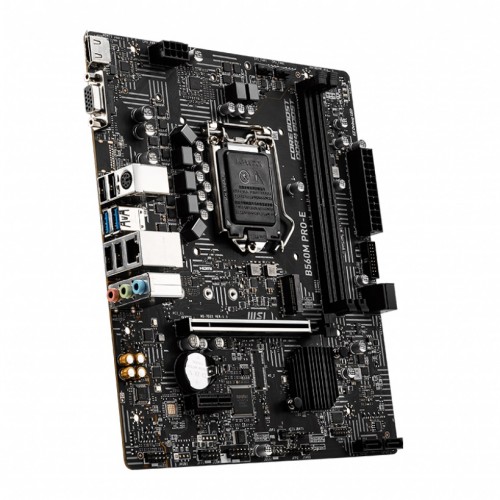

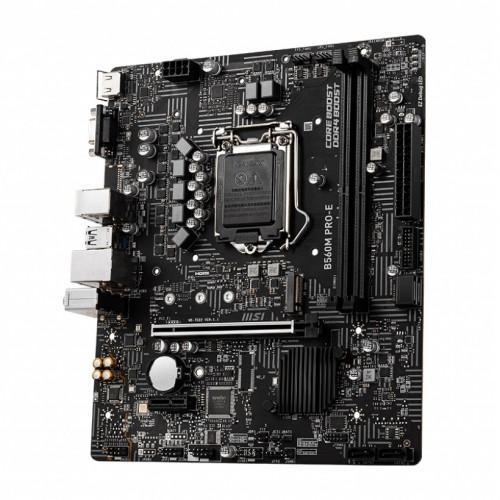

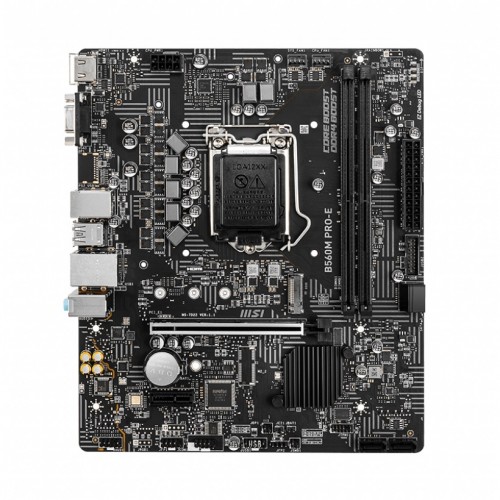

MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard
The latest MSI B560M PRO-E Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 4800(OC) MHz. This motherboard features Core Boost With a premium layout and digital power design to support more cores and provide better performance. Here used Advanced technology to deliver pure data signals for the best performance and stability. This motherboard has PCIe 4.0, Lightning Gen3 x4 M.2 with M.2 Shield Frozr that provides you Lightning Fast Experience. By 2.5G LAN, you can Upgrade network solution for professional and multimedia use that delivers a secure, stable and fast network connection. Here, Audio Boost rewards your ears with studio-grade sound quality. This motherboard has Steel Armor that Protecting VGA cards against bending for better performance, stability, and strength. This latest MSI PRO series motherboards are designed for professional and satisfy workflow. The MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard has 03 years of warranty.
What is the price of MSI B560M PRO-E Micro ATX Motherboard in Sylhet Bangladesh?
The latest price of MSI B560M PRO-E Micro ATX Motherboard in Sylhet Bangladesh is 10,000৳. You can buy the MSI B560M PRO-E Micro ATX Motherboard at best price from our website or visit any of our showrooms in Sylhet.
