 Available Color: Gun MetalDescription

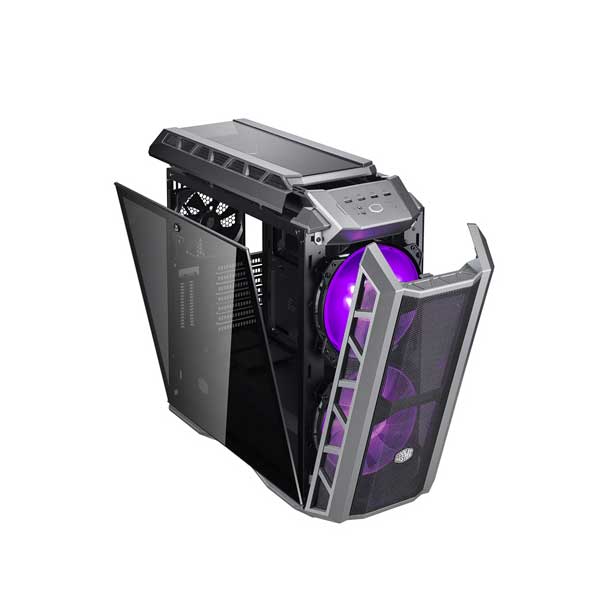

| Product Name | MasterCase H500P Mesh | |
| Model Number | MCM-H500P-MGNN-S10 | |
| Available Color | Gun Metal | |
| Materials | Outlook: Plastic, Steel Mesh Body: Steel Side panel: Tempered Glass, Steel |
|
| Dimensions (LxWxH) | 544 x 242 x 542mm / 21.4 x 9.5 x 21.3 inch | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (support upto 12″ x 10.7″) | |
| Expansion Slots | 7 + 2 (Support vertical graphics card installation) | |
| Drive Bays | 5.25″ | 0 |
| 2.5″ / 3.5″ | 2 | |
| 2.5″ SSD | 2 (Drive Bay support up to 5) | |
| I/O Port | USB 3.0 x 2 USB 2.0 x 2 Audio In & Out (supports HD Audio) |
|
| Pre-installed Fan(s) | Front | 200 x 25mm RGB fan x 2, 800RPM |
| Rear | 140 x 25mm fan x 1, 1200RPM | |
| Fan Support | Top | 120/140mm fan x 3 or 200mm fan x 2 |
| Front | 120/140mm fan x 3 or 200mm fan x 2 | |
| Rear | 120/140mm fan x 1 | |
| Liquid Cooling Support | Top | 120mm, 140mm, 240mm, 280mm, 360mm (maximum thickness clearance 55mm) |
| Front | 120mm, 140mm, 240mm, 280mm, 360mm | |
| Rear | 120mm, 140mm | |
| Clearance | CPU Cooler | 190mm / 7.5 inch |
| GPU | 412mm / 16.2 inch | |
| Power Supply Support | Bottom mount, ATX PS2 | |
