| Chipset | Intel® Z270 |
| Supported Processors | Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Max Memory | 2 x DIMM, Max. 32GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
| Onboard Video | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DisplayPort ports – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz – Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| Onboard Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A – Dual Headphone Amplifiers – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – SupremeFX Shielding Technology – Supports up to 32-Bit/192kHz playback *5 Audio Feature : – SupremeFX Shielding™ Technology – Optical S/PDIF out port(s) at back panel – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity – Sonic Radar III – Sonic Studio III |
| Onboard LAN | Intel® I219V Anti-surge LANGuard ROG GameFirst Technology Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) |
| Warranty | 03 Years warranty |
Description

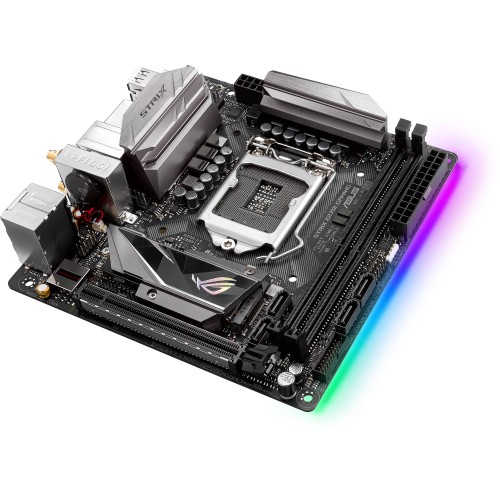

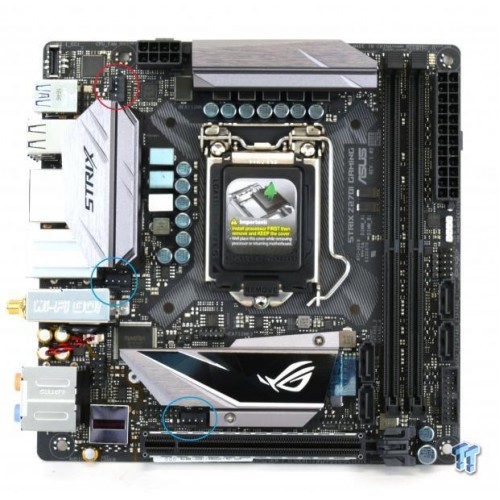

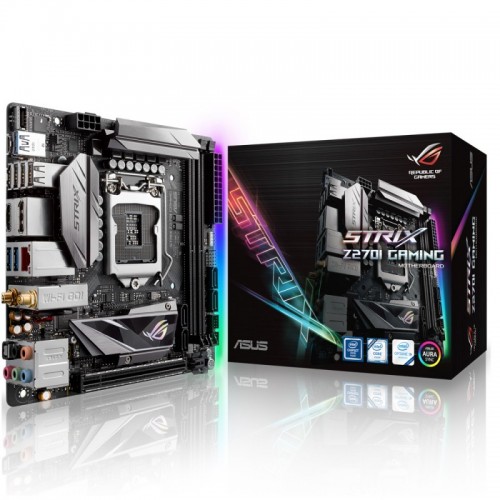

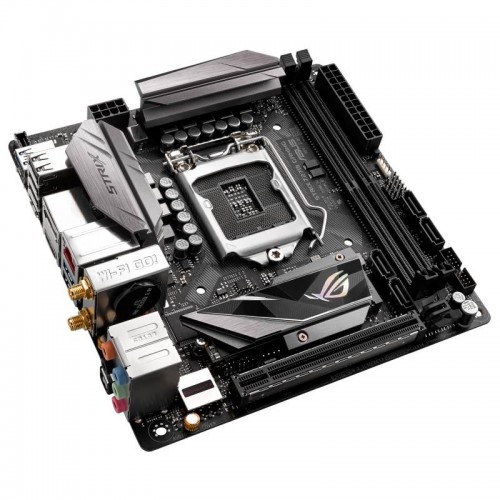

Asus Strix Z270I Mini ITX Gaming Motherboard
- The successor to Pro Gaming motherboards
- LGA1151 socket for 7th Gen and 6th Gen Intel® Core™ desktop processors
- Double-decker PCH and M.2 heatsinks design for optimal heat dissipation and gaming performance
- Aura Sync RGB LEDs and Aura 4-pin RGB header for ultimate customizability
- ROG SupremeFX audio: Renowned audio performance with dual headphone amplifiers, leveled-up Sonic Studio III, and Sonic Radar III
- Best gaming networking: Intel® Gigabit Ethernet, 2×2 802.11ac MU-MIMO Wi-Fi, and LANGuard and GameFirst technologies
- 5-Way Optimization: One-click system-wide overclocking
- Next-gen connectivity: Onboard dual M.2 slots for up to 32Gbps of PCIe bandwidth a front-panel USB 3.1 Type-C connector
- Patent-pending ASUS SafeSlot for enhanced PCIe retention and shearing
03 years warranty
