Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
Chipset | Intel Z590 Chipset | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
Form Factor | ATX: 30.5cm x 24.4cm | |
Expansion Slots | ||
PCI | 2x PCIe 4.0/3.0 x16 (x16, x8/ x8, x8/ x4) + 1 x PCIe 3.0 x16 (max. x4) Intel 11th &10th Gen Processors 2x PCIe 4.0/3.0 x16 slot(s) – Intel 11th processors support PCIe 4.0 x16 or x8/ x8 or x8/ x4 mode(s) – Intel 10th processors support PCIe 3.0 x16 or x8/ x8 or x8/ x4 mode(s) Intel Z590 Chipset 1x PCIe 3.0 x16 slot (supports x4 mode) |
|
M.2 Socket | Intel 11th & 10th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 – Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 – Intel 11th processors support PCIe 4.0 x4 mode – Intel 10th processors support PCIe 3.0 x4 mode Intel Z590 Chipset M.2_3 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) |
|
Memory | ||
Type | 4DDR4 | |
Slots | 4 x DIMM | |
Supported Memory | 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem III |
|
Maximum Memory | 128GB | |
Graphics | ||
Graphics | 1 x DisplayPort 1.4 1 x HDMI 2.0 Supports NVIDIA 2-Way SLI Technology |
|
Connector & Ports | ||
HDMI | 1 x HDMI 2.0 | |
Display Port (s) | 1 x DisplayPort 1.4 | |
USB (s) | Rear USB: Total 10 ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port (2 x Type-A, 1 x USB Type-C) 4 x USB 3.2 Gen 1 port (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen 2×2 connector(s) (suppport (s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|
LAN Port (s) | 2 x Intel I225-V 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth |
|
Supported Storage | Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports Intel 11th & 10th Gen Processors M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 – Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 – Intel 11th processors support PCIe 4.0 x4 mode – Intel 10th processors support PCIe 3.0 x4 mode Intel Z590 Chipset M.2_3 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 mode) M.2_4 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 6 x SATA 6Gb/s ports Raid function in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. |
|
Audio | – SupremeFX Shielding Technology – ALC4080 + Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium Japanese audio capacitors – Audio cover |
|
Internal I/O Ports | Connectors 1 x Thunderbolt 4 (onboard) Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) 1 x VRM heatsink Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Q Code 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header |
|
TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
Warranty Information | ||
Manufacturing Warranty | 3 Years |
Description

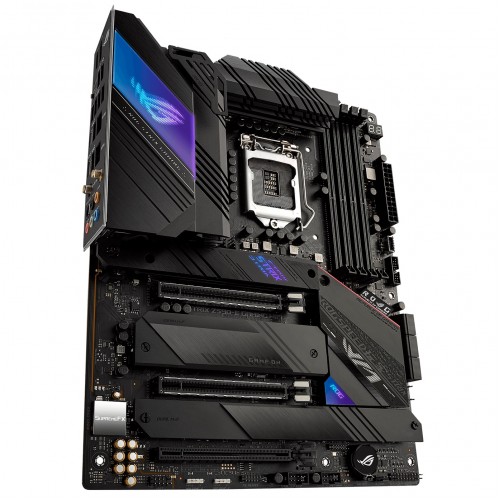

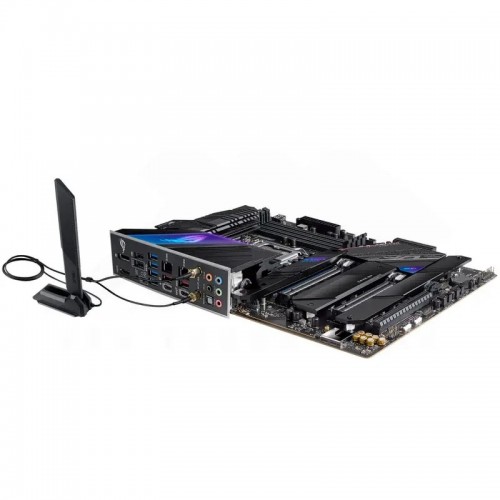

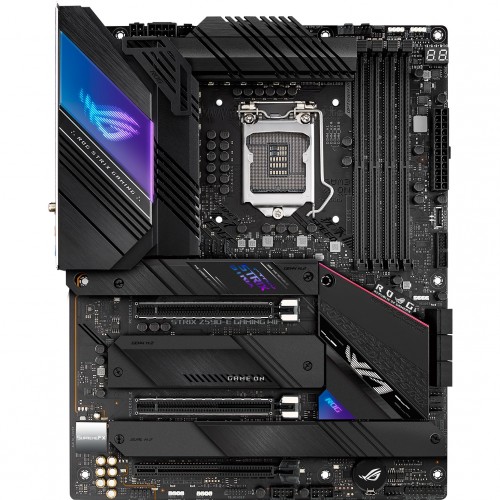

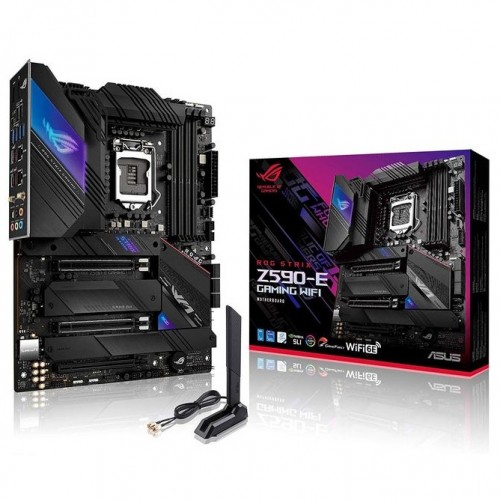

Asus ROG Strix Z590-E Gaming Wi-Fi Intel 10th and 11th Gen ATX Motherboard
The flagship ROG Strix Z590-E Gaming WiFi motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful 11th Generation Intel® Core™ Rocket Lake processors. Along with the latest Intel® Wi-Fi 6E and PCI Express® 4.0 M.2 for superfast transfer speeds and storage, Strix Z590-E Gaming WiFi features Two-Way AI Noise Cancelation to ensure clear communication in any scenario. This powerhouse of a motherboard is wrapped in a futuristic look that’s highlighted with a brushed-metal finish, iridescent ROG logo on the I/O shroud, and Aura Sync illumination. ROG Strix Z590-E Gaming WiFi is armed with up-rated power delivery and optimized cooling to enable top-tier performance for gaming. Fully equipped with intelligent controls for easy management of overclocking, cooling and networking settings, Strix Z590-E Gaming WiFi also features Two-Way AI Noise Cancelation for crystal-clear in-game communication. This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls. ROG Strix Z590-E Gaming WiFi includes the latest connectivity for supersmooth online experiences and blisteringly fast large file transfers. Superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience. Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments. Dual onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming. ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z590-E Gaming WiFi, this combination features the ALC4080 codec with a Savitech amplifier to deliver pristine audio, increasing playback resolution from 192 kHz to 384 kHz and also decreasing distortion and reducing signal interference from surrounding components. Cyberpunk-inspired aesthetics are accentuated by bold slashes and cybertext. By pairing ROG Strix Z590-E Gaming WiFi with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style. The patented ROG I/O shield is finished in sleek matte black and comes pre-mounted, which further simplifies the process of installing the motherboard. ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. Bundled third-party software like AIDA64 and MemTest86 allow you to benchmark individual components or the entire system. The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. If offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. The TurboV Processing Unit (TPU) provides AI Suite 3 with the intelligence needed to automatically fine-tune voltages, monitor system stats, and adjust overclocking settings.
What is the price of Asus ROG Strix Z590-E Gaming Wi-Fi Motherboard in Sylhet Bangladesh?
The latest price of Asus ROG Strix Z590-E Gaming Wi-Fi Motherboard in Bangladesh is 37,600৳. You can buy the Asus ROG Strix Z590-E Gaming Wi-Fi Motherboard at best price from our website or visit our showrooms in Sylhet.
