| Supported CPU | Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipset | Intel Z590 Chipset | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | 30.5cm x 23.4cm | |
| Audio | – Audio Shielding – Rear optical S/PDIF out port – Premium Japanese audio capacitors – Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4) Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot – Intel 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes – Intel 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes Intel Z590 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots * Supports PCIe bandwidth bifurcation for RAID on CPU function. |
|
| M.2 Socket | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 slot (Key M), type 2242/2260/2280/22110 M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) |
|
| Memory | ||
| Type | DDR4 2666MHz | |
| Supported Memory | 5133(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
-Dual Channel Memory Architecture -Supports Intel Extreme Memory Profile (XMP) -10th Gen Intel Core i7/i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. -11th Gen Intel processors support 3200/ 2933/ 2800/ 2666/ 2400/ 2133 natively. |
|
| Graphics | ||
| Graphics | 1 x DisplayPort 1.4 | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Rear USB:Total 6 ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet | |
| Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 – Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset: M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium Japanese audio capacitors – Dedicated audio PCB layers |
|
| Internal I/O Ports | Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x ASUS Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port Intrernal I/O Connectors Power related Storage related USB Miscellaneous 2 x AURA Addressable Gen 2 headers |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design with DrMOS) ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY AURA Sync |
|
Description

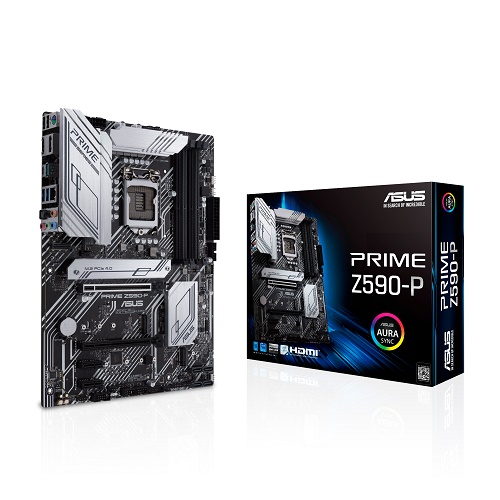

Asus Prime Z590-P Wi-Fi LGA1200 11TH & 10th gen ATX Motherboard
Asus Prime Z590-P Wi-Fi 11TH & 10th gen ATX Motherboard comes with Intel LGA 1200 socket t5hat is Ready for 11th and 10th gen Intel Core processors. This motherboard also featured with Enhanced power solution 10+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery. It is also has Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 Comprehensive cooling. Here, ASUS OptiMem II helps for Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking. This exclusive motherboard is also featured with Next-gen connectivity like Intel WiFi 6, PCIe 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support and OP product mainImage.
This new Asus Prime Z590 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors, and also this ASUS Z590 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. The ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. This motherboartd comes with Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z590-P WIFI provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Here, Prime Z590 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to stays cool and stable under intense workloads of your Rig. Here, An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. In this motherboard, A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers. This latest Asus Prime Z590-P Wi-Fi 11TH & 10th gen ATX Motherboard comes with 03 years warranty.
What is the price of Asus Prime Z590-P Wi-Fi 11TH & 10th gen ATX Motherboard in Sylhet Bangladesh?
The latest price of Asus Prime Z590-P Wi-Fi 11TH & 10th gen ATX Motherboard in Bangladesh is 20,100৳. You can buy the Asus Prime Z590-P Wi-Fi 11TH & 10th gen ATX Motherboard at best price from our website or visit our showrooms in Sylhet.
