Specification
| Key Features | ||
| Continuous Power | Guaranteed 650W of Continuous Power from Antec | |
| Efficiency (Approx.) | 92% Typically | |
| Certification | 80 Plus Gold | |
| Fan Size | 120mm FDB Fan | |
| Input | ||
| Voltage | 100-240 VAC ±10% | |
| Frequency Range | 50Hz-60Hz | |
| Current | 9A-4.5A | |
| Output | ||
| Modular Type | Fully Modular | |
| Total Power | 650W | |
| Connector | ||

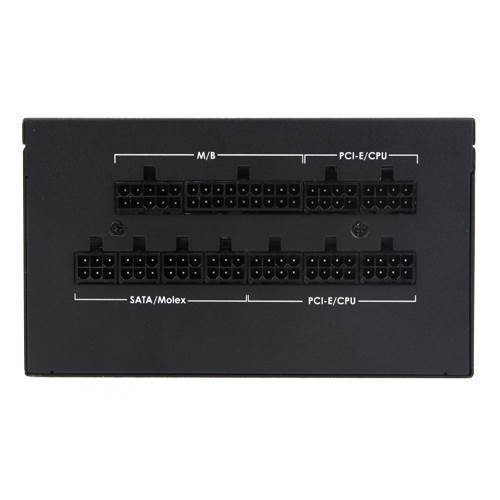

| Main Power | 1 x MB 24(20+4) Pin | |
| CPU | 1 x 8(4+4) Pin EPS 12V | |
| PCI-E | 4 x 8(6+2) Pin PCI-E | |
| SATA | 8 x SATA | |
| Molex | 3 x Molex | |
| Floppy | 1 x FDD | |
| Warranty Information | ||
| Manufacturing Warranty | 10 Years Warranty | |
Description

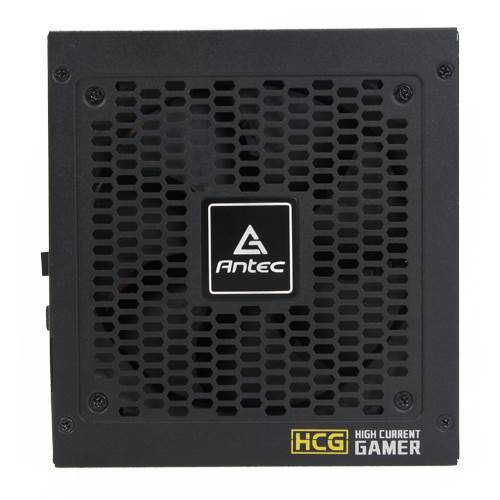

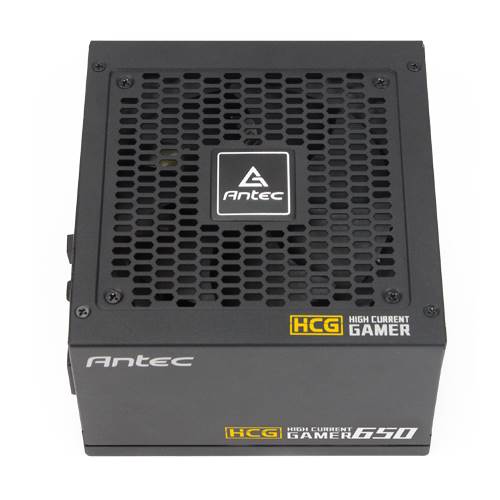

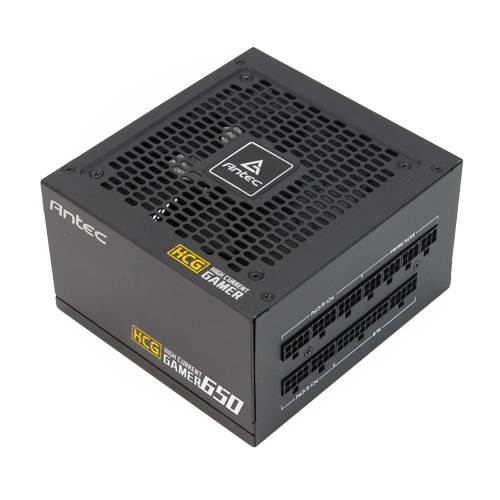

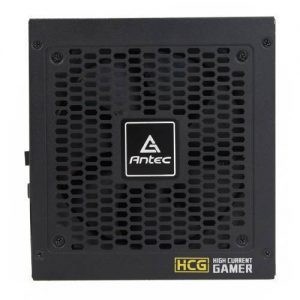

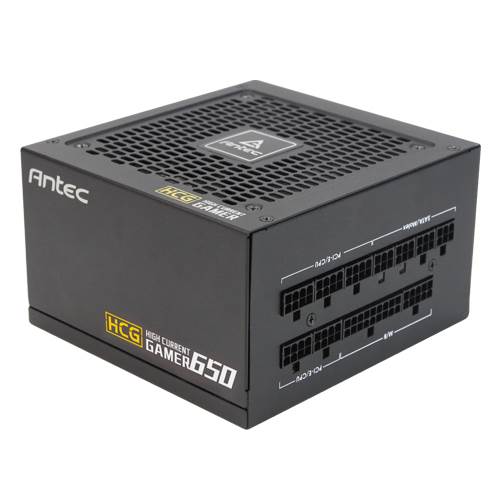

Antec High Current Gamer Gold Series 650 WATT Full Modular Power Supply
Antec High Current Gamer Gold Series 650W Supply offers unparalleled stability and 80 PLUS Gold-certified efficiency with Fully Modular. The High-performance Japanese capacitors ensure regulation and the tightest DC stability for reliability that you and your system can count on. This power supply Guaranteed 650W of Continuous Power from Antec with 100% Modular that Improves airflow and reduces clutter. This power supply is Up to 92% efficient, to reduce your electricity bill and PhaseWave Design that is server class full bridge LLC design with a synchronous rectification based on a DC-DC topology. In this power supply, it has 100-240 VAC ±10% Input Voltage, 9A-4.5A Input Current, 50Hz-60Hz Input Frequency Range with Active PFC (>0.9 typical) and 100-500ms Power Good Signal. This HCG power supply provides OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO protection ancTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC/KR Regulatory. In this power supply also added 120mm FDB Fan, 28(18+10) pin MBU socket for possible future MBU connectors. ATX12V 2.4 Engineered according to the newest PSU guideline and compatible with the latest CPU generation and also this Compact size 140mm depth power supply is the best choice for compact ATX chassis. This HCG 650W power supply provides 10 years of warranty.
