Specification
| Key Features | ||
| Continuous Power | 1000W | |
| Efficiency (Approx.) | 92% Typically | |
| Certification | 80 Plus Gold | |
| Fan Size | 135mm | |
| Input | ||
| Voltage | 100-240 VAC ±10% | |
| Frequency Range | 50Hz-60Hz | |
| Current | 13A-6.5A | |
| Output | ||
| Modular Type | Fully Modular | |
| Total Power | 1000W | |
| Connector | ||
| Main Power | 1 x MB 24(20+4) Pin | |
| CPU | 2 x 8(4+4) Pin EPS 12V | |
| PCI-E | 8 x 8(6+2) Pin | |
| SATA | 12 | |
| Molex | 6 | |
| Floppy | 1 | |
| Warranty Information | ||
| Manufacturing Warranty | 10 years | |
Description

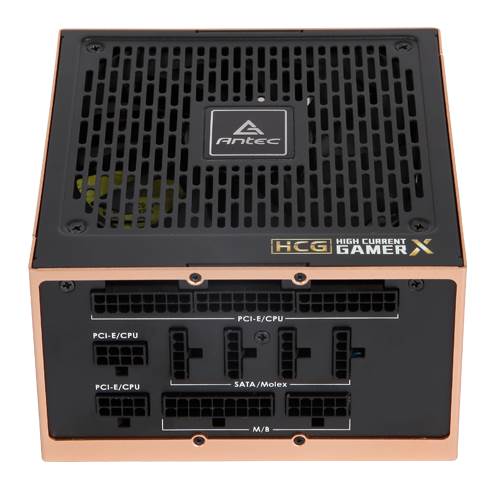

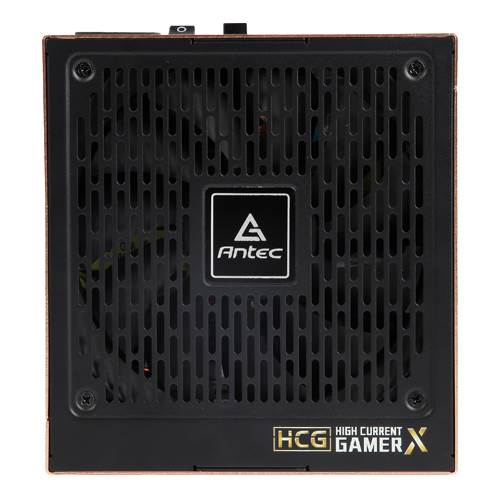

Antec HCG1000 Extreme 1000 Watt Power Supply
- Guaranteed 1000W of Continuous Power from Antec
- 100% Modular－Improves airflow and reduces clutter
- 80 PLUS® GOLD certified－Up to 92% efficient, to reduce your electricity bill
- PhaseWave™ Design－A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology

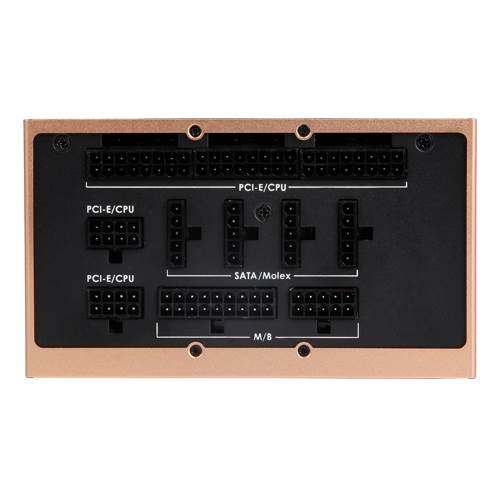

- 16 pin Socket－Industry-leading 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
- Antec Quality 10-year warranty and lifetime global 24/7 support
- 135mm FDB Silence－Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
- Zero RPM Manager－An advanced low voltage fan control with fan-off mode at low loads for absolute silence
- 99%+12V – Output for maximum CPU & GPU support
- CircuitShield™－Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
- 28(18+10) pin MBU socket – For possible future MBU connectors
- ATX12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation
- HCG Extreme delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.
