Specification
| Key Features | ||
| Type | DDR4 | |
| Capacity | 4GB | |
| Frequency | 2666 | |
| Operating voltage | Power supply VDD and VDDQ = 1.2V±0.06V Operating temperature 0°C to 85°C |
|
| Warranty Information | ||
| Warranty | Lifetime Warranty | |
Description

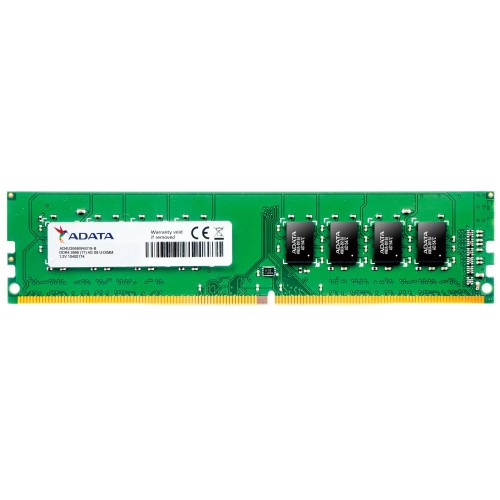

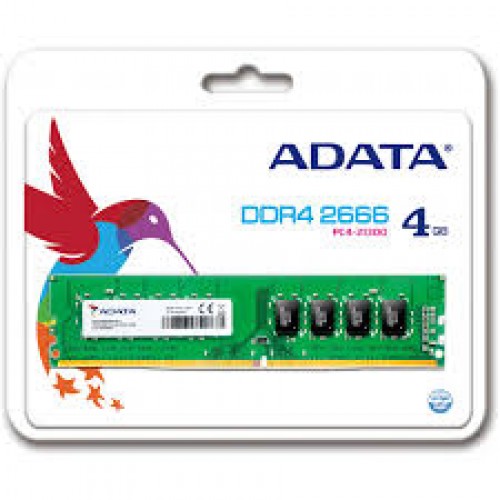

ADATA Premier DDR4 2666 unbuffered-DIMM memory is the latest upgrade solution that supports Intel’s newest platforms for faster data transfer and enhanced power efficiency. Utilizing a 288-pin design, operating voltage has been reduced from 1.5V on DDR3 to 1.2V, which not only helps save power by 20%, but also boosts transfer bandwidth speed to 21.3GB/s. Every chip in ADATA memory modules meets strict JEDEC and RoHS standards, ensuring compatibility, stability, and environmentally friendly products.
- Interface 288-pin
- Density 4GB
- Speed 2666MHz
- CAS Latency CL 19-19-19
- Power supply VDD and VDDQ = 1.2V±0.06V
- DRAM activation power supply VPP= 2.5V (+0.25V / -0.125V)
- DRAM spec/VCC DDR4 STD 1.2V
- Operating temperature 0°C to 85°C
- Warranty Lifetime
